Eslabón abierto/Cadena de ancla sin pernos
La cadena de anclaje de eslabones sin pernos se usa ampliamente en equipos flotantes, barcos (barcos), plataformas petroleras y boyas de amarre.
Z2suplementoesAmplia gama de tamaños y grados: Grado U1/ U2 / U3 de 12,5 mm a70milímetro
|
d(φ) |
TAMAÑO DEL ESLABÓN DE LA CADENA |
BM1 |
BM2 |
BM3 |
APROX. |
|||||
|
CADENA DE ESLABONES ABIERTOS U1 |
CADENA DE ESLABONES ABIERTOS U2 |
CADENA DE ESLABONES ABIERTOS U3 |
PESO |
|||||||
|
6d |
3.6d |
POR |
||||||||
|
DIÁMETRO |
FUERA DE |
FUERA DE |
PRUEBA |
ROTURA |
PRUEBA |
ROTURA |
PRUEBA |
ROTURA |
27.5M |
|
|
LONGITUD |
ANCHO |
CARGA |
CARGA |
CARGA |
CARGA |
CARGA |
CARGA |
|||
|
(en.) |
(mm.) |
(mm.) |
(mm.) |
(kn.) |
(kn.) |
(kn.) |
(kn.) |
(kn.) |
(kn.) |
(kg.) |
|
1/2 |
12.5 |
75 |
45 |
28.75 |
57.81 |
41.2 |
82.6 |
56.4 |
112.8 |
85.41 |
|
9/16 |
14 |
84 |
50.4 |
34.78 |
69.93 |
51 |
101.9 |
70.76 |
141.51 |
106.55 |
|
5/8 |
16 |
96 |
57.6 |
47.1 |
94.72 |
66.2 |
132.3 |
92.42 |
184.83 |
139.43 |
|
11/16 |
17.5 |
105 |
63 |
56.35 |
113.31 |
78.89 |
157.78 |
110.55 |
221.1 |
178.35 |
|
3/4 |
19 |
114 |
68.4 |
66.42 |
133.57 |
93.6 |
187.2 |
130.32 |
260.64 |
217.68 |
|
13/16 |
20.5 |
123 |
73.8 |
77.33 |
155.49 |
108.64 |
217.27 |
151.7 |
303.42 |
229.14 |
|
7/8 |
22 |
132 |
79.2 |
89.06 |
179.08 |
125.4 |
250.9 |
174.4 |
349.4 |
264.49 |
|
15/16 |
24 |
144 |
86.4 |
105.98 |
213.25 |
149.9 |
298.9 |
207.9 |
415.8 |
341.82 |
|
1-1/16 |
26 |
156 |
93.6 |
124.38 |
250.12 |
175.4 |
350.8 |
244 |
488 |
369.94 |
|
1-1/8 |
28 |
168 |
100.8 |
144.26 |
290.08 |
203.8 |
406.7 |
283 |
566 |
427.04 |
|
1-3/16 |
30 |
180 |
108 |
165.6 |
333 |
234.2 |
467.5 |
324.9 |
649.8 |
490.98 |
|
1-1/4 |
32 |
192 |
115.2 |
188.42 |
378.88 |
265.6 |
531.2 |
369.6 |
739.3 |
559.65 |
|
1-5/16 |
34 |
204 |
122.4 |
212.7 |
427.72 |
299.9 |
599.8 |
417.3 |
834.6 |
671.52 |
|
1-7/16 |
36 |
216 |
129.6 |
238.46 |
479.52 |
336.1 |
672.3 |
467.8 |
935.7 |
707.85 |
|
1-1/2 |
38 |
228 |
136.8 |
265.7 |
534.28 |
374.4 |
748.7 |
521.3 |
1042.5 |
788.98 |
|
1-9/16 |
40 |
240 |
144 |
294.4 |
592 |
414.5 |
829.1 |
577.6 |
1155.2 |
869.36 |
|
1-5/8 |
42 |
252 |
151.2 |
324.58 |
652.68 |
457.7 |
915.3 |
636.8 |
1273.6 |
959.3 |
|
1-3/4 |
44 |
264 |
158.4 |
356.22 |
716.32 |
502.7 |
999.6 |
698.9 |
1398 |
1111.25 |
|
1-13/16 |
46 |
276 |
165.6 |
389.34 |
782.92 |
548.8 |
1097.6 |
763.9 |
1527.8 |
1152.07 |
|
1-7/8 |
48 |
288 |
172.8 |
423.94 |
852.48 |
597.8 |
1195.6 |
831.7 |
1663.5 |
1256.26 |
|
2 |
50 |
300 |
180 |
460 |
926.09 |
648.8 |
1293.6 |
902.5 |
1805 |
1360.41 |
|
2-1/16 |
52 |
312 |
187.2 |
497.54 |
1000.48 |
697.63 |
1395.26 |
976.14 |
1952.28 |
1485.61 |
|
2-1/8 |
54 |
324 |
194.4 |
536.54 |
1078.92 |
752.33 |
1504.66 |
1052.68 |
2105.36 |
1648.08 |
|
2-3/16 |
56 |
336 |
201.6 |
577.02 |
1160.32 |
809.09 |
1618.18 |
1132.1 |
2264.2 |
1715.97 |
|
2-5/16 |
58 |
348 |
208.8 |
618.98 |
1244.68 |
867.91 |
1735.82 |
1214.4 |
2428.8 |
1844.5 |
|
2-3/8 |
60 |
360 |
216 |
662.4 |
1332 |
928.8 |
1857.6 |
1299.6 |
2599.2 |
1973.29 |
|
2-7/16 |
62 |
372 |
223.2 |
707.3 |
1422.28 |
991.75 |
1983.5 |
1387.68 |
2775.36 |
2101.56 |
|
2-1/2 |
64 |
384 |
230.4 |
753.66 |
1515.52 |
1056.77 |
2113.54 |
1478.66 |
2957.32 |
2298.47 |
|
2-9/16 |
66 |
396 |
237.6 |
801.5 |
1611.72 |
1123.85 |
2247.7 |
1572.52 |
3145.04 |
2398.1 |
|
2-11/16 |
68 |
408 |
244.8 |
850.82 |
1710.88 |
1192.99 |
2385.98 |
1669.26 |
3338.52 |
2522.88 |
|
2-3/4 |
70 |
420 |
252 |
901.6 |
1813 |
1264.2 |
2528.4 |
1768.9 |
3537.8 |
2697.65 |
Más fotos detalladas para la cadena del ancla:
 |
 |
| Tratamiento superficial galvanizado en caliente | La etiqueta normal para cada PC |
 |
 |
| Comprobación del tamaño del eslabón de la cadena | Peso de la cadena del ancla |

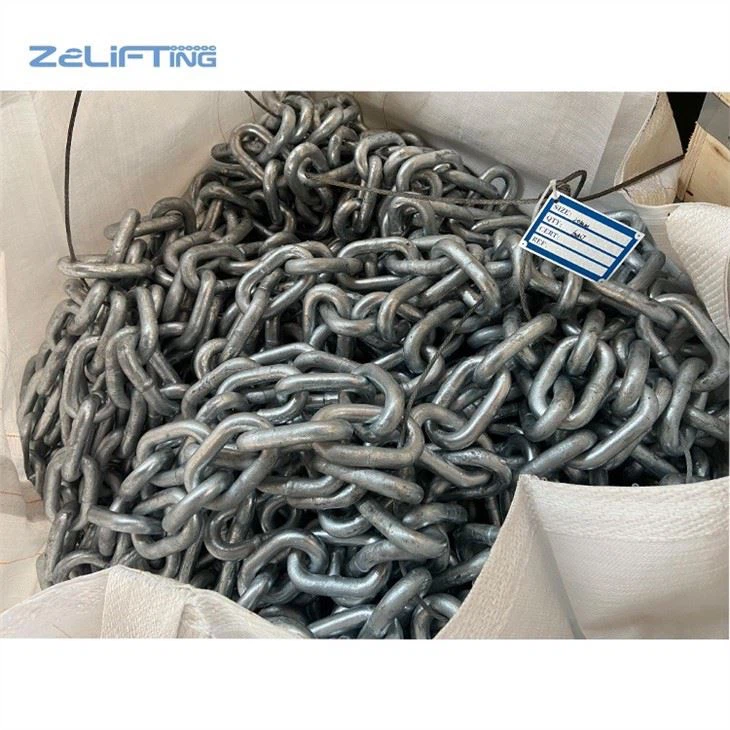

El paquete de la cadena de ancla de eslabón abierto
 |
 |
